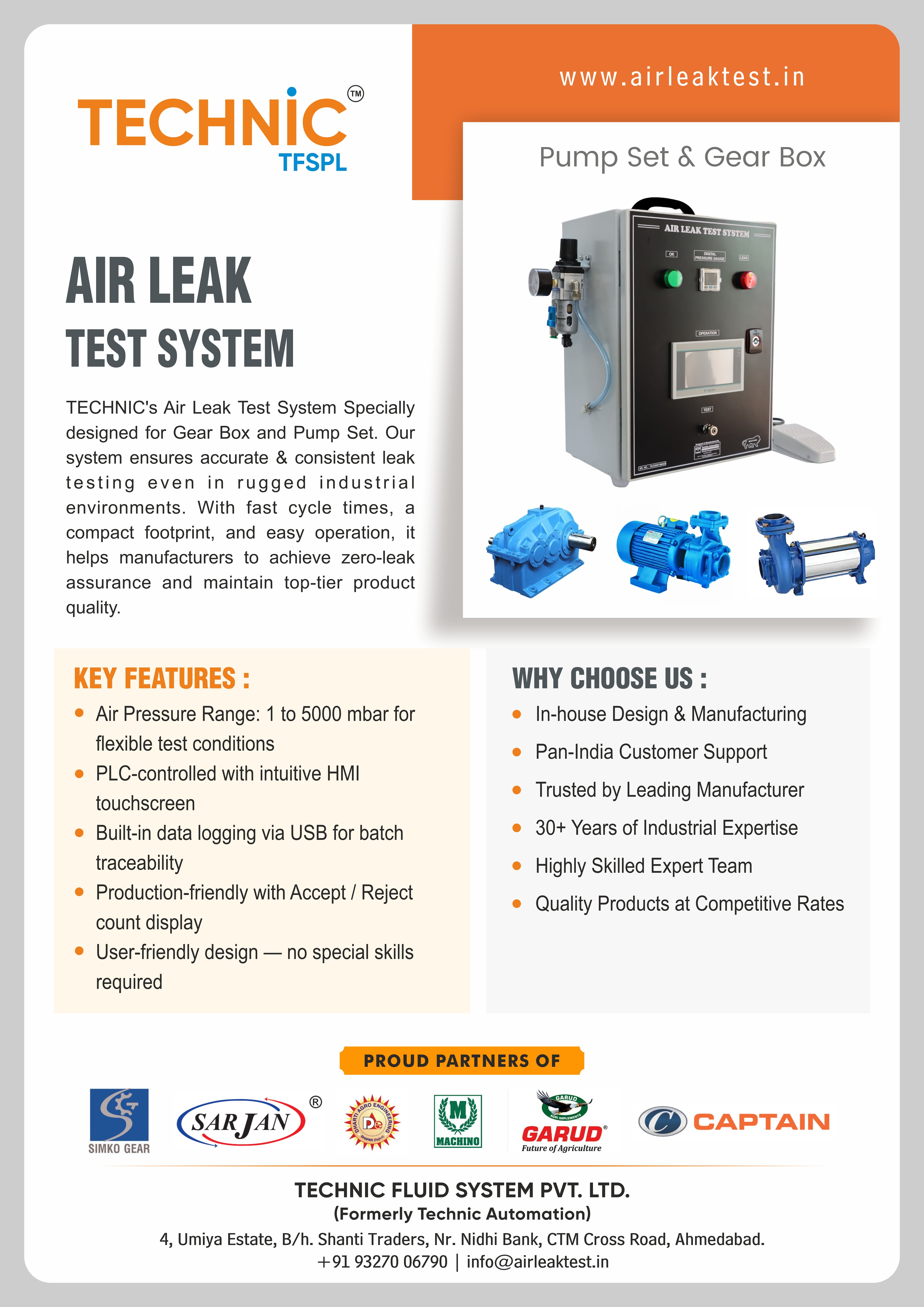

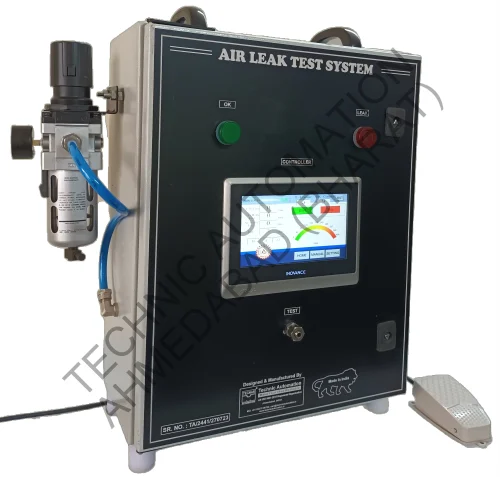

Air Leak Test System for Gear Box
An air leak test system for a gearbox is a quality control tool used to ensure the integrity of the gearbox's sealing against air leaks. Here's how such a system typically works:
Preparation: Before testing, the gearbox is usually cleaned and prepared to ensure accurate results. This might involve removing any debris or contaminants from the surfaces being tested.
Setup: The gearbox is connected to the air leak test system. This usually involves sealing off any openings except for the ones being tested.
Pressurization: The gearbox is pressurized with air to a specified pressure level. This could be done using a compressor or a dedicated pressurization system integrated into the testing equipment.
Measurement: Once the gearbox is pressurized, the air leak test system measures the pressure inside the gearbox over a set period of time. Any drop in pressure indicates a leak within the gearbox.
Analysis: The system analyzes the rate of pressure drop to determine the severity of the leak. This analysis may involve comparing the observed pressure drop against predetermined acceptable leak rates.
Reporting: The results of the air leak test are typically recorded and reported. This could include the magnitude of any leaks detected, as well as any other relevant information such as the location of the leaks within the gearbox.
Adjustment or Repair: If leaks are detected, the gearbox may need to be adjusted or repaired to improve sealing. After adjustments or repairs are made, the air leak test may be repeated to verify that the issues have been resolved.
Overall, an air leak test system for a gearbox is a crucial tool for ensuring the quality and reliability of the gearbox's performance, particularly in applications where air tightness is critical, such as in automotive transmissions or industrial machinery.
